What are the parts of the liquid nitrogen tank?
Liquid nitrogen has an ultra-low temperature of -196 degrees, which can well preserve biological cells, embryos, etc. It is also used in the beauty industry for food processing. With the maturity of technology, more and more industries use liquid nitrogen tanks. Therefore, in order to meet the different needs of various industries, liquid nitrogen tanks also produce different types to offer options.
Structurally speaking, the liquid nitrogen tank is mostly made of aluminum alloy or stainless steel, and is divided into two layers inside and outside. The specific components are as follows:
(1) Enclosure: The outer layer of the liquid nitrogen tank is an outer casing, and the upper part thereof is a tank opening.
(2) Inner tank: The space in the inner layer of the liquid nitrogen tank is called the inner tank, generally is a corrosion-resistant aluminum alloy, and the bottom of the inner tank has a base for fixing the lifting cylinder, and the liquid nitrogen and the sample can be stored therein. In the slot.
(3) Interlayer: The interlayer refers to the gap between the inner and outer layers of the tank. It is in a vacuum state. The purpose of vacuuming is to improve the thermal insulation performance of the can, while the interlayer is provided with a heat insulating material and an adsorbent.
(4) Neck tube: The neck tube is usually made of FRP material. The inner and outer layers are connected and kept to a certain length. The adsorbent is placed around the neck tube and the bottom layer. The neck of the top is specially designed. The structure must have pores to discharge the nitrogen evaporated from the liquid nitrogen to ensure safety and heat insulation to minimize the vaporization of liquid nitrogen.
(5) Cover: The stopper is made of plastic with good heat insulation to prevent evaporation of liquid nitrogen while fixing the handle of the lifting cylinder.
(6) Lifting the bucket: The lifting cylinder is placed in the tank inner tank, in which the thin tube can be stored. The handle of the lifting cylinder is hung on the neck and fixed with a stopper.
Liquid nitrogen tanks are available for your convenience:

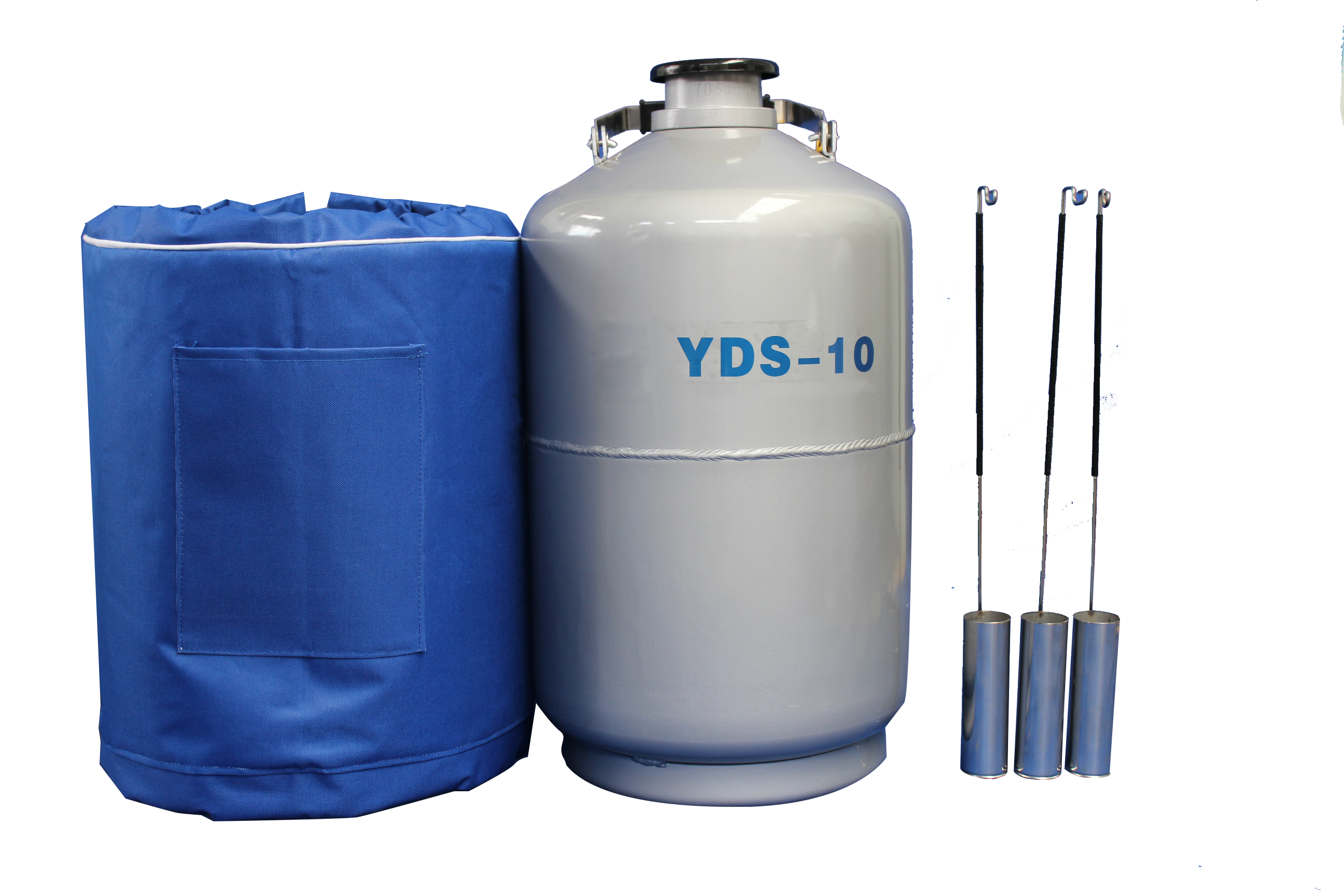

(1) Jacket: Medium and small liquid tanks are equipped with artificial leather backpacks for convenient carrying, which increases the anti-collision protection of the products and also facilitates manual transportation by users.
(2) Liquid nitrogen tank trolley: This product is made of all stainless steel. Its function is to transport liquid nitrogen tank, and it can also assist the artificial pouring of liquid nitrogen in the container. It has the advantages of safe and reliable transport and dumping of liquid nitrogen container and saving the operator's physical energy.
(3) Pallet transporter: This product is suitable for the transport of liquid nitrogen biological containers with large volume (geometry volume greater than 30 liters). When the liquid nitrogen container is lifted up and placed in the recess of the pallet truck, the liquid nitrogen biological container can be flexibly moved indoors. It has the characteristics of convenient, safe and reliable transporting liquid nitrogen container.
(4) Self-pressurized liquid nitrogen pump: Self-pressurized liquid nitrogen pump is also used for self-pressurized liquid nitrogen tank. This device can be used for the purpose of replenishing liquid nitrogen from a pressurized liquid nitrogen tank to other containers. It has the characteristics of convenient and reliable operation and low evaporation loss of liquid nitrogen during liquid discharge.
In short, the function of the liquid nitrogen tank is to preserve liquid nitrogen and reduce volatilization. Therefore, for liquid nitrogen tanks of any size, it should have the characteristics of good heat insulation performance, sturdy and durable, easy to use, etc., in order to better meet the production or scientific research.
