How to Choose Liquid nitrogen container dewar?

Editor:adminClick: Time:2019-03-12 16:13
Our factory is China manufacturer of vacuum frozen liquid nitrogen containers and liquid nitrogen sprayer for low temperature semen, cell, sperm, sample storage, widely used in hospital, lab and vets, biology company, cryothorapy treatment, liquid nitrogen ice cream food . If any interests, please contact me! ivy@pchaoinstrument.com  Thank you!

How to Choose Liquid nitrogen container dewar?


1. Determine the purpose

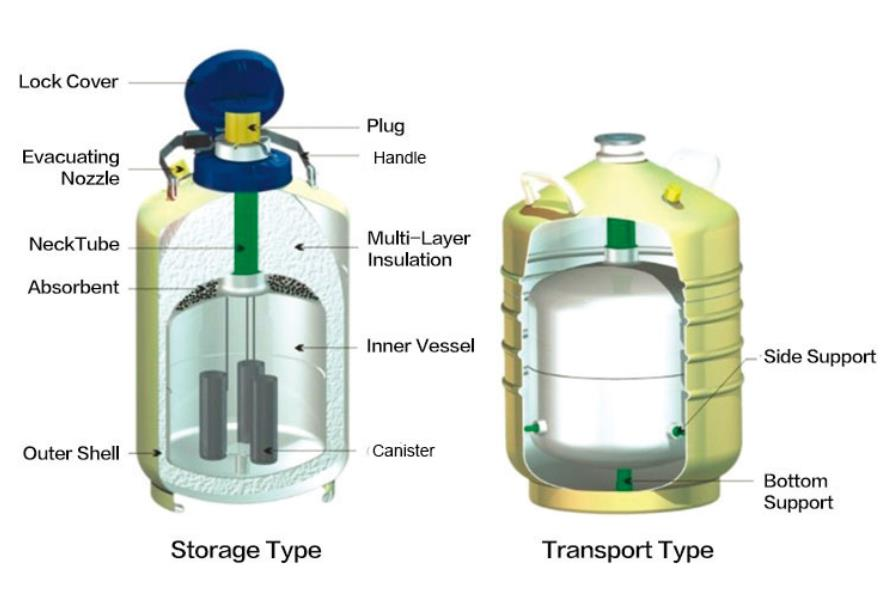

According to the use, liquid nitrogen tanks can be generally divided into liquid nitrogen storage tanks and liquid nitrogen transport tanks.

Liquid nitrogen storage tanks are mainly used to store liquid nitrogen for later low temperature experiments or storage of samples that require cryopreservation such as cells, tissues, etc. (for static storage of indoor liquid nitrogen, not suitable for long-distance transportation under working conditions) use)

Liquid nitrogen transport tanks are used for low temperature sample transport.

In order to meet the conditions of transportation, a special shockproof design was made. In addition to being statically stored, it can also be used for transportation under the condition of filling liquid nitrogen, but it should also avoid violent collision and vibration.

How to Choose Liquid nitrogen container dewar?
2. Determine the amount of frozen sample, diameter and volume required

The amount of frozen specimens will determine the volume of the liquid nitrogen tank. For small specimens, choose a small liquid nitrogen tank.

If you need long liquid nitrogen storage, you can choose a liquid nitrogen tank with a volume of 30 liters or 35 liters and a diameter of 50 mm for storage. The static storage time of liquid nitrogen is more than half a year.

If the specimen is large in volume, it is necessary to select a liquid nitrogen tank with a large volume. If a small volume liquid nitrogen tank is purchased for freezing, the specimen will occupy the space inside the liquid nitrogen tank, and the liquid nitrogen tank can only contain a little liquid nitrogen, thereby reducing The number of days in which liquid nitrogen is stored may cause necrosis of frozen specimens due to lack of liquid nitrogen.

The size of the specimen is also critical for the selection of liquid nitrogen tanks. Generally, the diameter of the liquid nitrogen tank should be larger than the diameter of the frozen specimen. For example, if your specimen is 90mm in diameter, and you have purchased a liquid nitrogen tank with a diameter of 80mm, your specimen will not fit in and will not meet your needs. .

There are two kinds of buckets inside the liquid nitrogen tank, one is a round bucket, which can be used to place larger tissue-like or large-capacity cryotubes. The other is an extractable bucket, which can be placed in a standard 2ml cryotube for storing cells and other products.
