Liquid nitrogen containers are engineered to store cryogenic liquids at −196°C with minimal heat input. While vacuum insulation effectively eliminates convection and greatly reduces radiation (with multi-layer insulation), solid heat conduction through structural components still remains a key challenge. Advanced structural design is therefore essential to minimize conductive heat transfer.

One of the most important strategies is optimizing the neck tube design. The neck tube connects the inner vessel to the outer shell and is the primary pathway for heat conduction. Engineers reduce heat transfer by making the neck longer and narrower, which increases the conduction path length and reduces the cross-sectional area available for heat flow. In addition, low thermal conductivity materials are often used to further limit heat transfer.

Another critical factor is the design of internal support structures. The inner vessel must be mechanically supported, but direct solid contact between inner and outer shells can create thermal bridges. To address this, supports are designed to have minimal contact area and are made from materials with low thermal conductivity. Some designs use thin-walled structures or point-contact supports to reduce heat conduction while maintaining strength.

Material selection plays a major role. Components exposed to thermal pathways are often made from materials that balance strength and low thermal conductivity, such as specific alloys or composite materials. This ensures structural stability without significantly increasing heat transfer.

The use of multi-layer insulation (MLI) indirectly supports conduction reduction by lowering the overall thermal load, allowing conduction pathways to contribute less to total heat input. Combined with vacuum insulation, this creates a highly efficient thermal barrier system.

Geometric optimization is also important. Designers aim to avoid unnecessary structural connections between the inner and outer walls. Wherever possible, they reduce the number and size of conductive paths, ensuring that the vacuum layer remains as thermally isolated as possible.

Finally, precision manufacturing and assembly are essential. Even well-designed structures can lose effectiveness if components are misaligned or improperly assembled, creating unintended contact points that increase conduction.

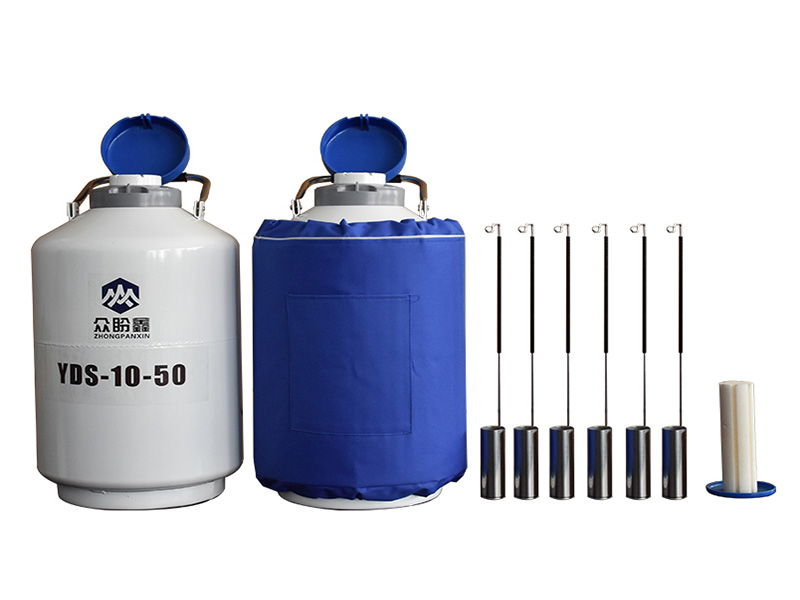

At Zhongpanxin, we integrate advanced structural design, optimized materials, and precise manufacturing to minimize heat conduction in our liquid nitrogen containers. This results in lower evaporation rates, improved insulation efficiency, and more reliable cryogenic storage.

Reducing heat conduction is not about eliminating structure—it is about engineering it intelligently.
